The LT4 has the technology to communicate the proper information back to the ECU to manage spark energy and dwell timing. This is why ultra-low resistance plug wires can have a significant impact on the engine’s performance. When running too low plug wire resistance, the affect causes misfires or RFI interference with the surrounding electronics.
Features:
10mm High-Temp Silicon Sized Wire designed specifically to insulate the core!
GM OEM SmartCoil required low 500 Ohms per foot resistance for optimum ECU communication while keeping high RFI noise suppression

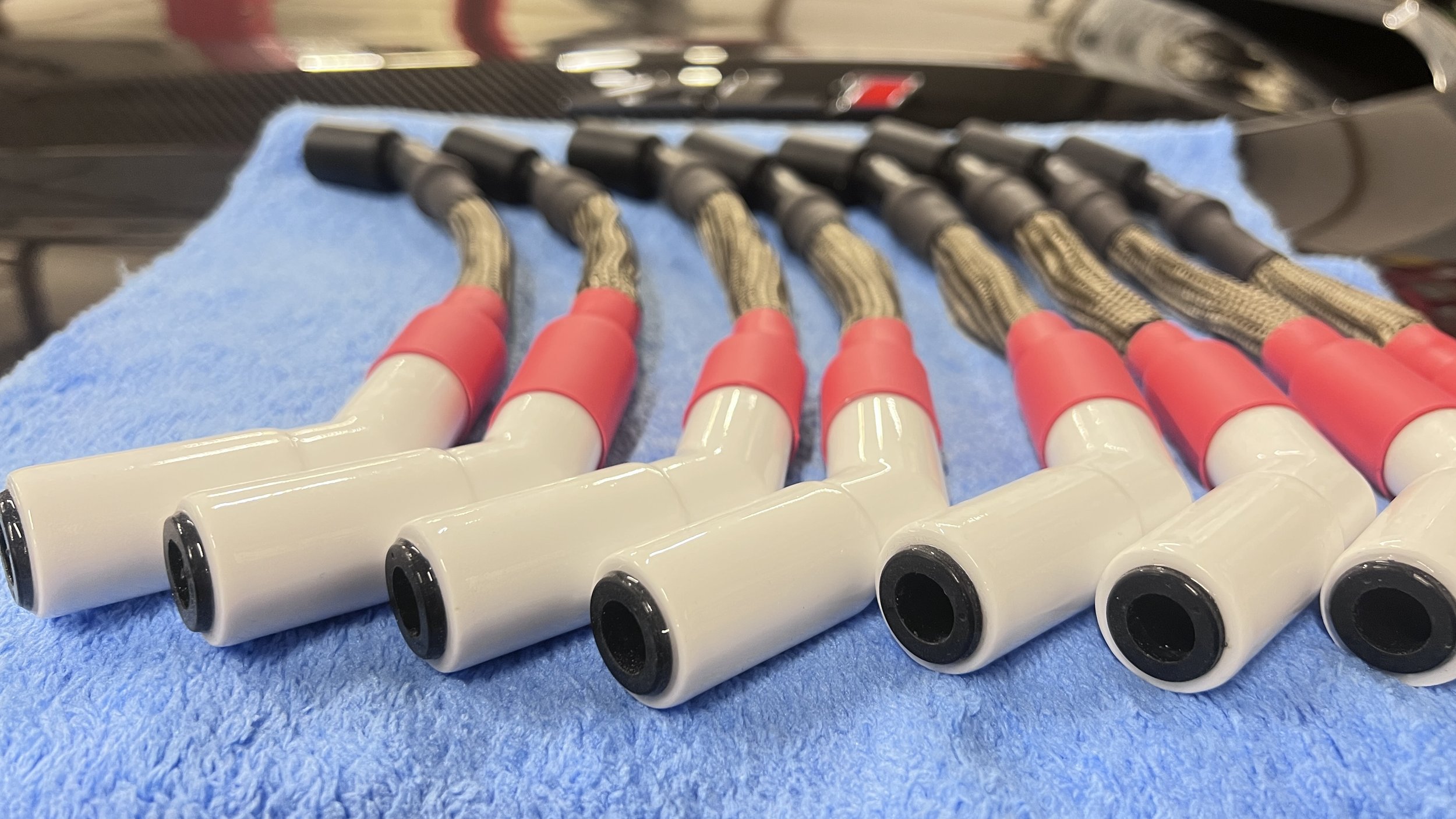

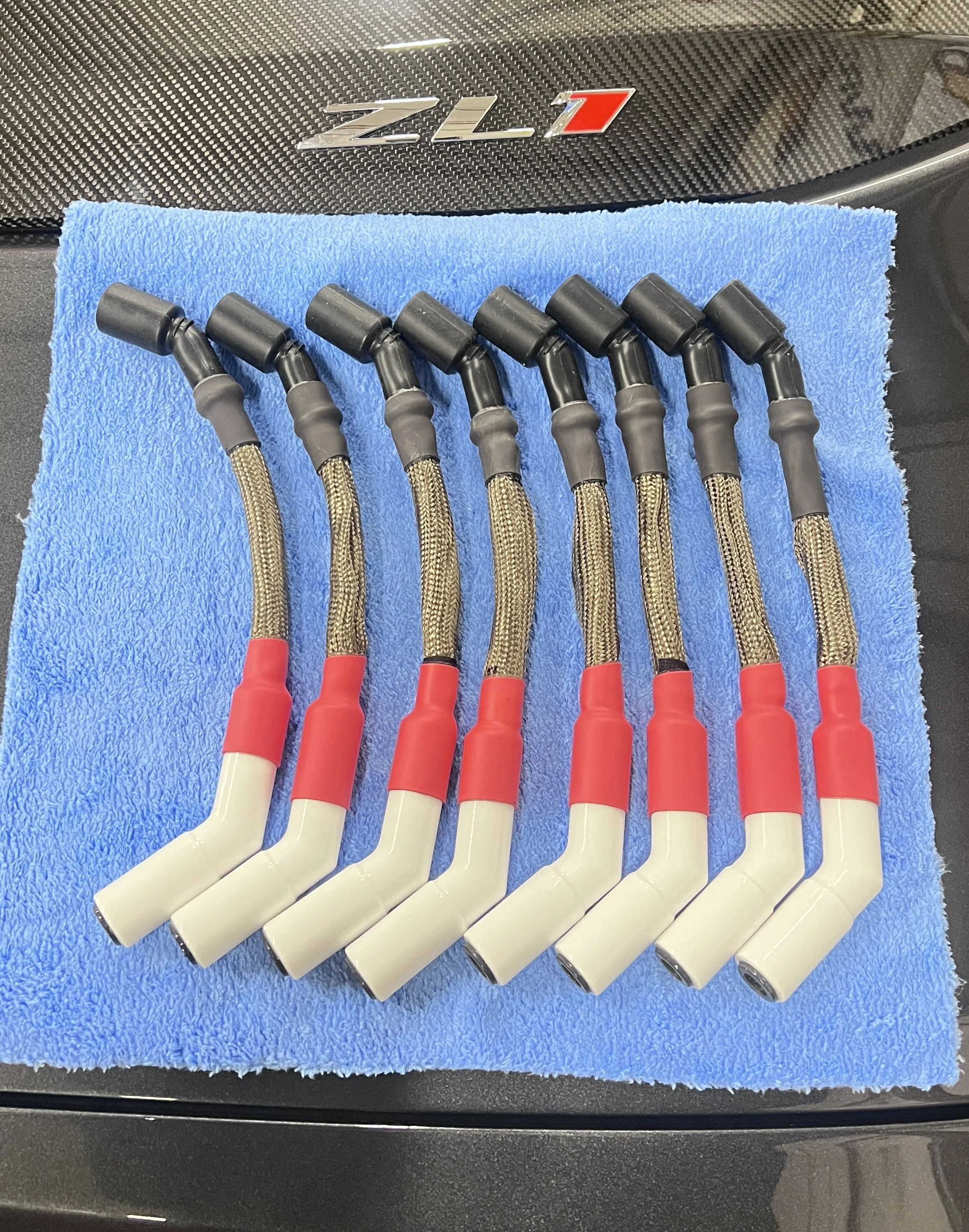

Hand-Made by Patriot Motorsports USA for the LT4 powered ZL1 and Corvette Z06. Will work on LT1 6th-Gen Camaros as well.
2500º Fahrenheit capable Titanium sleeves with Marine-Rated HD Epoxied shrink ends for easy grip by hand or HF soft jaw pliers.

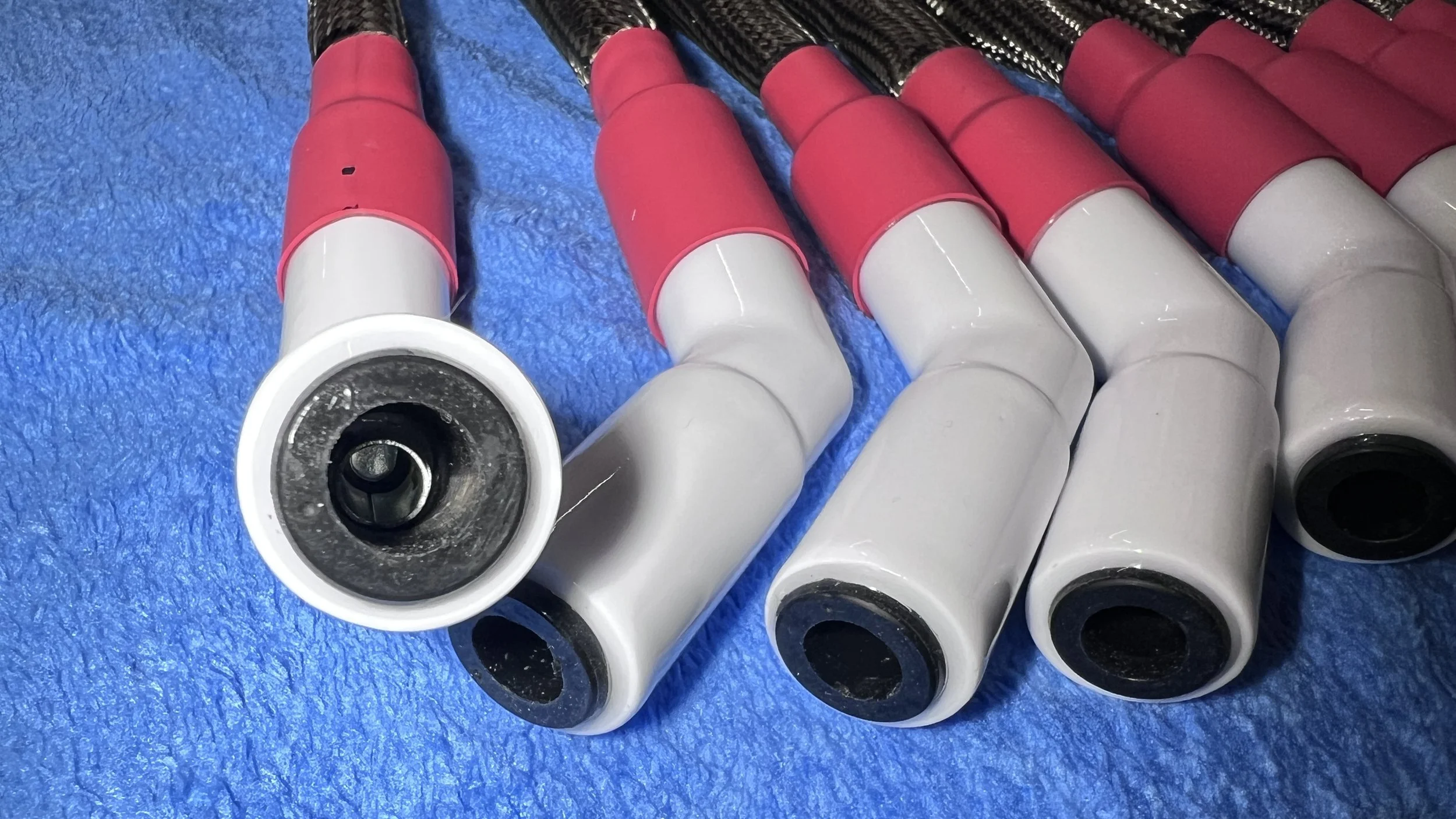

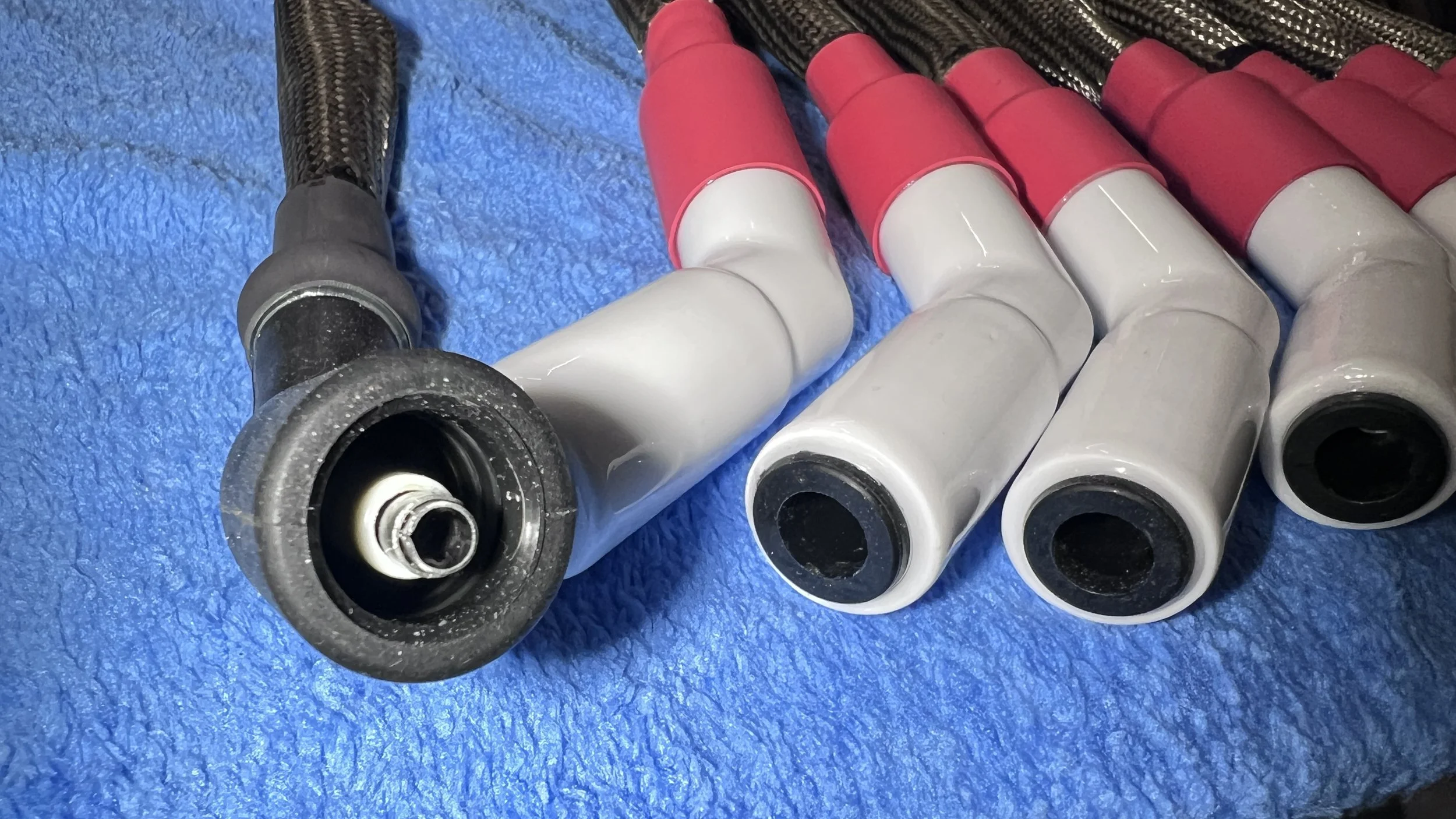

10mm Silicon Sealed Porcelain Ceramic spark plug boots offer extreme radiant heat protection up to 2000º Fahrenheit
Snap-Lock ends for a positive hold to the plug and coilpack.
Why is it so important to have proper Spark Plug Wires?
The GM LT4 coilpack functions as a high-performance coil-near-plug system designed to convert low-voltage battery power into the high-voltage surge required to ignite compressed fuel in a supercharged engine.
Core Operating Principles:
Step-Up Transformation: Each coil acts as a compact electrical transformer. It takes ~12–14 volts from the battery and uses a primary and secondary winding system to "step up" the energy into a burst of 30,000 to 85,000+ volts, depending on engine load, fuel type and tuning.
Electromagnetic Induction: When the engine control module (ECM) provides a signal, current flows through the primary windings, creating a magnetic field. When the ECM "opens" the circuit, this field collapses instantly, inducing a massive voltage spike in the secondary windings, sending all the power to the spark plug.
Coil-Near-Plug Layout: Unlike "coil-on-plug" systems where the coil sits directly on the spark plug, the LT4 uses a coil-near-plug setup. The coils are mounted on the valve covers and connected to the spark plugs via short, high-voltage capable plug wire like the ones we make in our shop. This configuration helps isolate the electronics from the intense heat of the cylinder head
Wiring and Control: HOW DOES THIS WORK??
The LT4 coil connector typically uses a 4-pin configuration to communicate with the ECM:
Ignition Voltage: Constant 12V power from the battery/alternator, so having a high quality AGM battery with lots of reserve power is the key! I DO NOT recommend small Lithium batteries.
Chassis Ground: Provides the electrical return path. I recommend adding a second, full tinned-copper marine-grade ground from the chassis to the engine block!
Trigger/Signal: The 5V pulse from the ECM that tells the coil exactly when to fire. This is the key to the Smart-Coil technology! Your coils are part of the feedback telling the ECM if your tune sucks, if the fuel is bad or if you’re ready to make some power!
Reference Ground: A clean ground for the internal igniter circuit to prevent electrical noise. This is also feedback for the ECM.
Performance Role in the LT4:
Because the LT4 is supercharged, the air-fuel mixture is under much higher pressure than in a standard engine. High cylinder pressure creates more electrical resistance, requiring a "stronger" spark to jump the gap. The LT4 coils are specifically designed with a high dwell capability to ensure they can fully charge and deliver a consistent spark even at the high RPMs and boost levels seen in the ZL1, C7-Z06 Corvette and CTS-V vehicles. The “Dwell” is the time the energy is being pushed into the coilpack before it is released to the spark plugs in the simplest of explanations. When fine-tuning the LT4 to make reliable power at consistent high RPM/Loads, making sure the dwell time of the coilpacks will not lead to misfires or worse knock. We build our products so the ECM has the utmost capability to get realtime information in MILLI-SECONDS from each cylinder so when the car is tuned to our specifications, there is very little interference holding the ECM making the correct calculations instantly… this is also why we exclusively use the BRISK Silver Spark Plugs!
